Dramatically reducing weight without sacrificing strength
Remote control and touch screen template controls for precision operation
Designed for ease of transport and quick setup
Robust 1.5 HP motor with variable 2-speed operation for optimal control and efficiency
Environmental power for extended field operation
Backed by a comprehensive two-year warranty
4+ U.S. Patents protecting our cutting-edge gutter machine technology
2-Year Comprehensive Warranty on all products, ensuring long-term reliability
We have 20 years of experience leading the industry in gutter installation machinery.
SPARTAN machines utilize a proprietary aviation-grade aluminum frame design that reduces weight by up to 40% compared to traditional steel machines. This revolutionary approach combines strategic reinforcement at high-stress points with innovative material selection, resulting in machines that maintain exceptional rigidity and durability while being significantly lighter and more portable.
With a fully charged standard battery pack, SPARTAN machines typically operate for 6-8 hours of continuous production. The actual runtime varies based on the specific model, production speed settings, and material thickness. Our optional enhanced battery pack can extend runtime up to 10-12 hours, and when combined with the solar charging system, you can achieve virtually unlimited operation in suitable weather conditions.
Yes, SPARTAN machines are engineered for reliable operation in temperatures ranging from 20°F to 110°F (-6°C to 43°C). The all-electric design eliminates the cold-start issues common with gas-powered alternatives, and our sealed electrical systems protect critical components from moisture and condensation. For extreme cold environments, we recommend storing the battery packs indoors when not in use and utilizing our optional cold-weather package for operations below 20°F.
promote sustainability and reduce environmental impact.
Changing between gutter sizes on SPARTAN combo machines typically takes 15-30 minutes for trained operators. Each machine comes with a comprehensive tool kit specifically designed for quick changeovers, and our machines feature clearly marked adjustment points with calibrated settings. We provide detailed video training for size changeovers, and many customers report that after several changes, their teams can complete the process in under 15 minutes.
SPARTAN machines require minimal maintenance compared to traditional gutter machines. The standard maintenance schedule includes:
Daily: Visual inspection and cleaning of guide channels
Weekly: Lubrication of marked points (approximately 10 minutes)
Monthly: Drive system inspection and adjustment if necessary (approximately 30 minutes)
Quarterly: Comprehensive inspection and electrical system check (approximately 1 hour)
No special tools or technical expertise are required for routine maintenance, and all service points are easily accessible without major disassembly.
Yes, all SPARTAN machines are designed for single-operator efficiency. The standard wireless remote control allows one person to manage the entire production process, controlling the machine from up to 50 feet away while handling material or inspecting output. For optimal efficiency on larger jobs, we typically recommend a two-person crew – one operating the machine and handling material, and another installing the finished gutters – but the machine itself requires only one operator.
Transportation options vary by model:
Cadet Series machines (800-810 lbs) can be transported in standard pickup trucks with appropriate tie-downs
Ranger Series machines (860-1,200 lbs) can be transported in larger trucks or on standard trailers

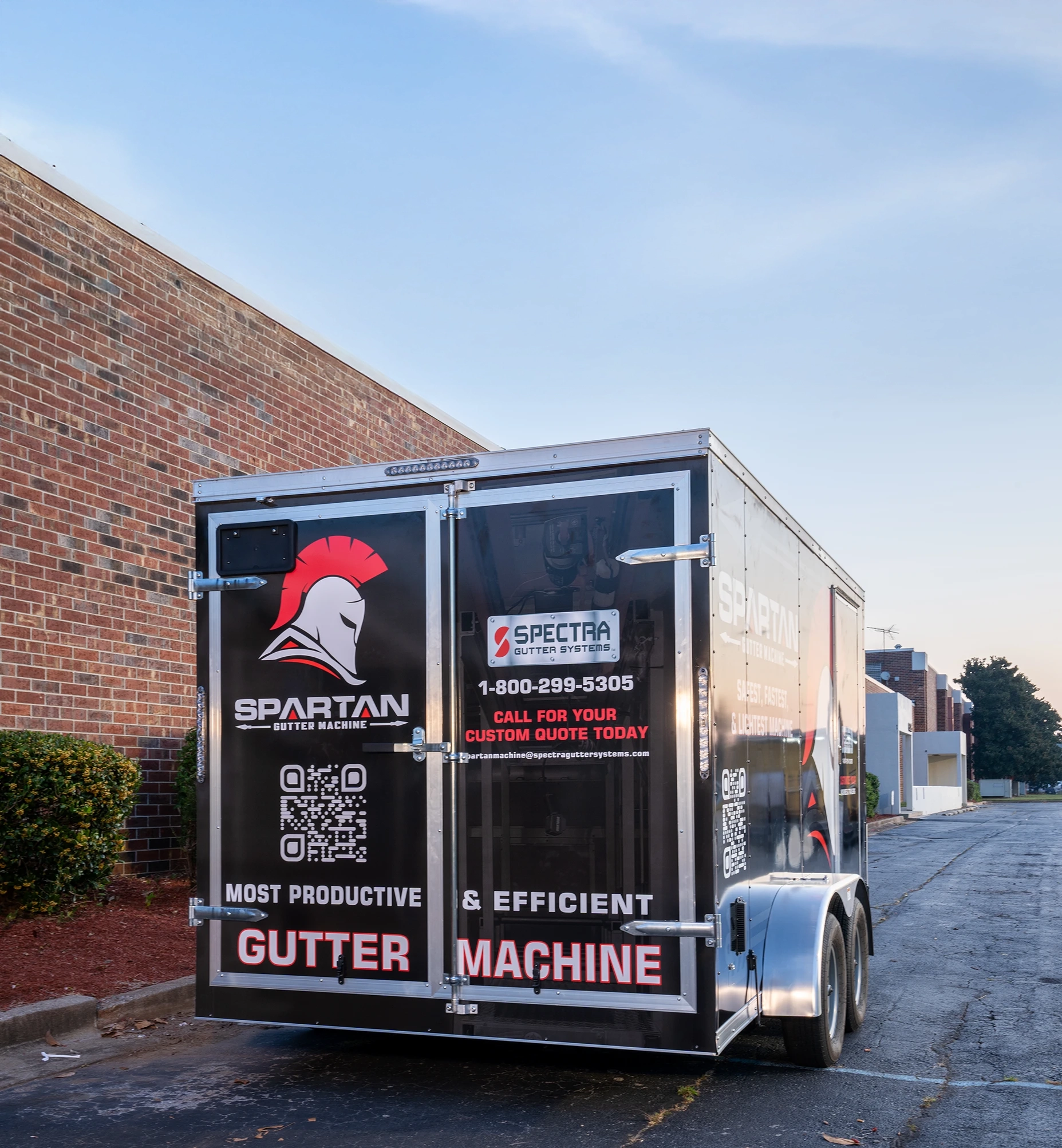

For optimal efficiency, we recommend our custom trailers specifically designed for each machine model
Box truck conversions provide the ultimate in protected transportation and mobile workshop capability

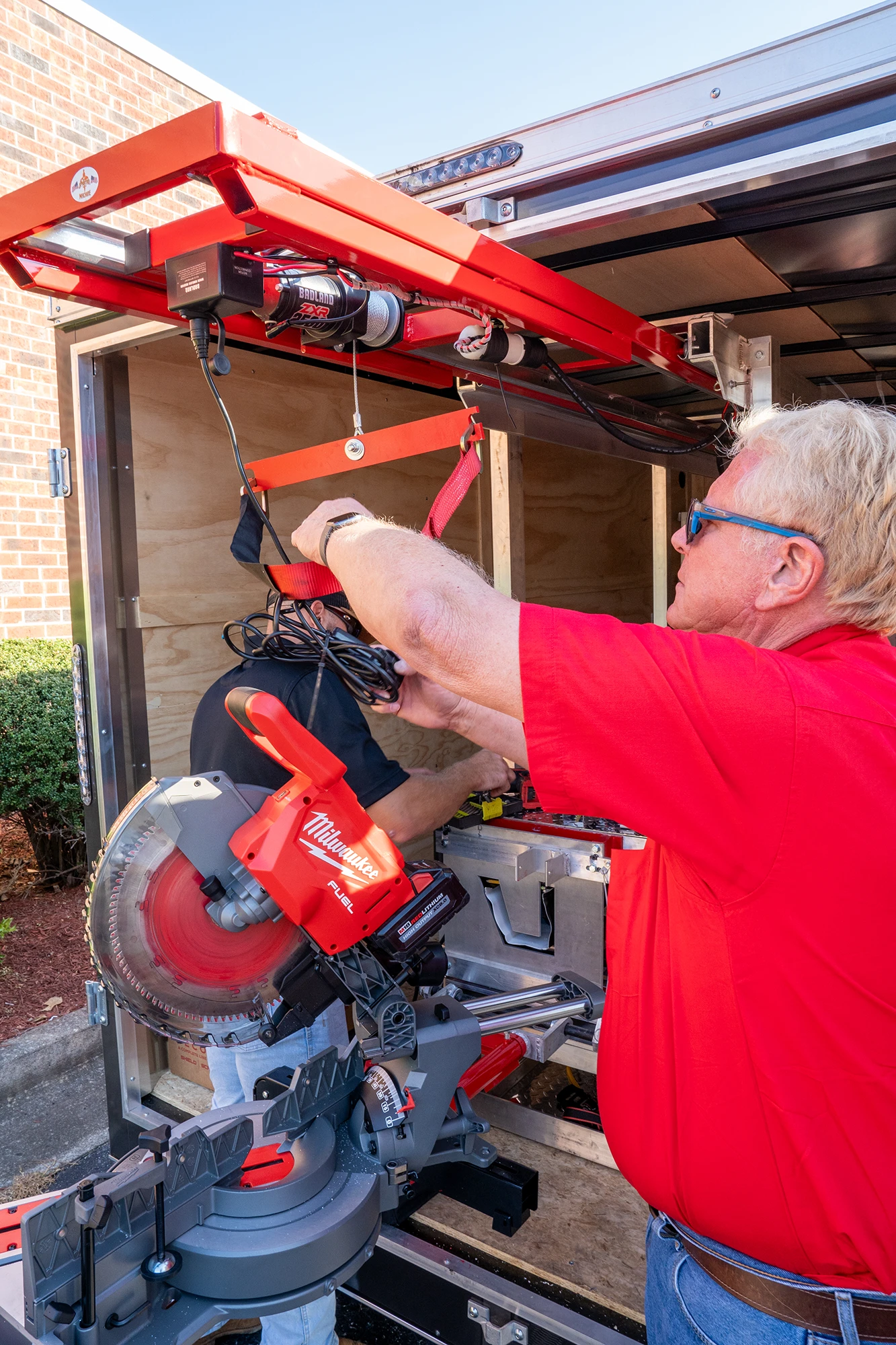

All machines include marked lifting points for safe loading and unloading, and our optional boom crane accessory simplifies the process for heavier models.
SPARTAN machines offer flexible power options:
Standard 110V electrical connection (20 amp circuit recommended)
Optional 220V connection for maximum performance (available on all models)
Battery power packs for complete independence from external power
Solar charging capability for extended off-grid operation
Generator compatibility (2000W minimum, 3000W recommended for optimal performance)
For maximum flexibility, many customers choose our comprehensive power package, which includes both battery operation and solar charging capabilities, allowing for operation in virtually any environment regardless of power availability.
